MSOFTCON Library help ..... for VC++

Discussion in 'Programming' started by mubashirnisar, Oct 24, 2009.

  1. #1
    hello friends,

    I'm using Microsoft visual c++ 2008 express edition .I want to use graphics in this compiler i helped from below link about usage of MSOFTCON Library ..

    http://www.tvdsb.on.ca/saunders/courses/online/ICS4M/Cplusplus/msconsole.htm

    but there is problem when i compile the code compiler give ma errors
    msoftcon.cpp(11) : error C2664: 'CreateFileW' : cannot convert parameter 1 from 'const char [8]' to 'LPCWSTR'

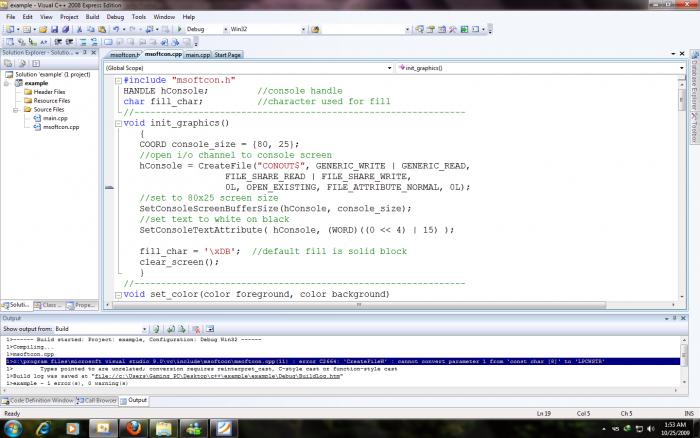

    Error showning in Image
    http://forums.digitalpoint.com/attachment.php?attachmentid=30421&stc=1&d=1256414073
    ///////////////////////////////////////init_graphics()//////////////////////////////////////
    void init_graphics()
    {
    COORD console_size = {80, 25};
    //open i/o channel to console screen
    hConsole = CreateFile("CONOUT$", GENERIC_WRITE | GENERIC_READ,// error C2664: 'CreateFileW' : cannot convert parameter 1 from 'const char [8]' to 'LPCWSTR'
    FILE_SHARE_READ | FILE_SHARE_WRITE,
    0L, OPEN_EXISTING, FILE_ATTRIBUTE_NORMAL, 0L);
    //set to 80x25 screen size
    SetConsoleScreenBufferSize(hConsole, console_size);
    //set text to white on black
    SetConsoleTextAttribute( hConsole, (WORD)((0 << 4) | 15) );

    fill_char = '\xDB'; //default fill is solid block
    clear_screen();
    }


    //////////////////////////////////////////////Main.cpp////////////////////////////////////////////////
    #include <iostream>
    #include"msoftcon.h"

    using namespace std;

    int main ( )
    {
    color foreground, background;//variables to set colour scheme
    int x1,y1,x2,y2;
    //radius,height; // variables for x/y co-ordinates

    foreground = cBROWN;
    background = cDARK_BLUE;
    x1 = 11;
    y1 =11;

    init_graphics( );
    clear_screen( );
    set_color(foreground, background);
    set_cursor_pos(x1, y1);
    cout << "hello";

    x1 = 10;
    y1 = 10;
    x2 = 16;
    y2 = 12;

    draw_rectangle(x1,y1,x2,y2);
    return 0;
    }


    please reply me???


    Attached Files:

    Last edited by a moderator: Oct 24, 2009
    mubashirnisar, Oct 24, 2009 IP
