Image display problem

Discussion in 'HTML & Website Design' started by dazzcelt, Feb 5, 2009.

  1. #1
    Hey all!

    Ok, im trying to get 4 images on one line with a margin between. I want to make 2 rows.

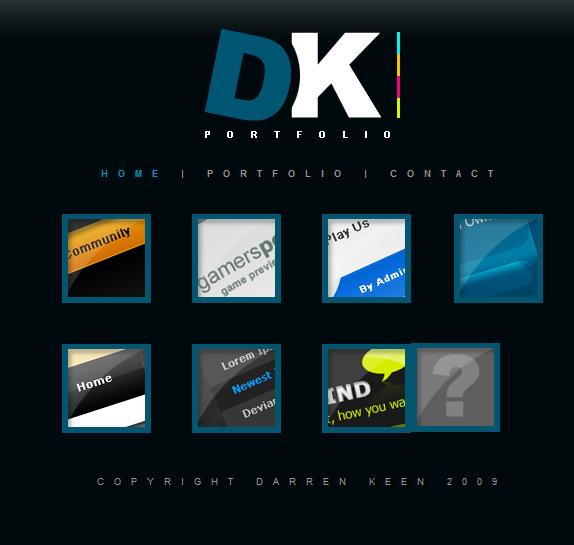

    The first row displays properly, but when I put the 2nd row in, the last image never floats right. Heres a screenshot:
    [​IMG]

    Heres the HTML code
    <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
    <html xmlns="http://www.w3.org/1999/xhtml">
    <head>
    <meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
    <title>Home | www.darrenkeen.com</title>
    <link href="styles.css" rel="stylesheet" type="text/css" />
    </head>

    <body>
    <div id="wrapper">
    	<div id="logo" ><a href="http://www.darrenkeen.com"><img src="images/logo.jpg" border="0" width="196" height="109" alt="Logo" /></a>
        </div>
        <div id="nav"><p align="center" ><strong><span>HOME</span> | <a href="portfolio.html">PORTFOLIO</a> | <a href="contact.html">CONTACT</a></strong></p>
        </div>
    	<div id="mainimage">
    		<div id="firstline1"><img src="images/preview/communityp.jpg" alt="community" width="89" height="89" /></div>
    		<div id="firstline2"><img src="images/preview/gamersp.jpg" alt="gamers" width="89" height="89" /></div>
    		<div id="firstline3"><img src="images/preview/gamingp.jpg" alt="gaming" width="89" height="89" /></div>
    		<div id="firstline4"><img src="images/preview/hi-techp.jpg" alt="hi-tech" width="89" height="89" /></div>
    		<div id="secondline1"><img src="images/preview/personalp.jpg" alt="personal"  width="89" height="89" /></div>
    		<div id="secondline2"><img src="images/preview/qualityp.jpg" alt="quality"  width="89" height="89" /></div>
    		<div id="secondline3"><img src="images/preview/speakp.jpg" alt="speak"  width="89" height="89" /></div>
    		<div id="secondline4"><img src="images/preview/none.jpg" alt="none"  width="89" height="89" /></div>
    	</div>
        <div id="footer"><p align="center">COPYRIGHT DARREN KEEN 2009</p> </div>
    </div>
    </body>
    </html>

    Code (markup):
    CSS code

    @charset "utf-8";
    /* CSS Document */

    * {
    margin:0;
    padding:0;
    }

    a:link{
    color:#979797;
    text-decoration: none;
    }

    a:visited{
    color:#979797;
    text-decoration: none;
    }

    a:hover{
    color:#FFFFFF;
    text-decoration: none;
    }


    body {
    background-image:url(images/bg.jpg);
    background-repeat:repeat-x;
    background-color:#00090d;
    font-family:"Arial", Helvetica, sans-serif;
    }

    #wrapper {
    margin:0 auto;
    width:481px;
    }

    #logo {
    width:196px;
    height:109px;
    margin:auto;
    margin-top:78px;
    }

    #nav {
    color:#979797;
    font-size: 9px;
    margin-top:30px;
    letter-spacing:10px;
    }

    #nav span{
    color:#0097c8;
    }

    #main {
    margin-top:35px;
    }

    #main p{
    color:#FFFFFF;
    font-size:10px;
    line-height:20px;
    }

    #main a:link{
    color:#FFFFFF;
    }

    #mainimage {
    margin-top:35px;
    height:227px;
    width:481px;
    }

    #firstline1{
    width:89px;
    float:left;
    }

    #firstline2{
    margin-left:41px;
    width:89px;
    float:left;
    }

    #firstline3{
    margin-left:41px;
    width:89px;
    float:left;
    }

    #firstline4{
    width:89px;
    float:right;
    }


    #secondline1{
    width:89px;
    float:left;
    margin-top:41px;
    }

    #secondline2{
    margin-left:41px;
    width:89px;
    float:left;
    margin-top:41px;
    }

    #secondline3{
    margin-left:41px;
    width:89px;
    float:left;
    margin-top:41px;
    }

    #secondline4{
    width:89px;
    float:left;
    margin-top:40px;
    }

    #footer {
    font-size:9px;
    margin-top:35px;
    color:#979797;
    letter-spacing:10px;
    }

    #footer span{
    color:#0097c8;
    }



    Code (markup):
    Please help :(

    Thanks

    dazzcelt, Feb 5, 2009 IP
  2. supportresort

    supportresort Member

    Messages:
    28
    Likes Received:
    1
    Best Answers:
    1
    Trophy Points:
    48
    #2
    There is a difference in your firstline4 and secondline4 definitions:

    #firstline4{
    width:89px;
    float:right;
    }

    #secondline4{
    width:89px;
    float:left;
    margin-top:40px;
    }

    If you update the float for secondline4 to right then that should resolve the issue. Alternatively, adding:

    margin-left:41px;

    and then leaving float set to left should have the same effect.

    supportresort, Feb 5, 2009 IP
