help me to understand this simple problem

Discussion in 'CSS' started by judge0, Feb 22, 2008.

  1. #1
    can anyone help to understand the problem here i think it such a simple problem but difficult for me

    <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
    <html xmlns="http://www.w3.org/1999/xhtml">
    <head>
    <meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
    <title>Untitled Document</title>
    <style>
    body{
    background-color:#CCCCCC
    }

    #container{width:720;
    margin: 0 auto
    }

    #header{
    background:#666666;
    padding: 20px 20px 20px 60px
    }

    #content{
    width:520;
    float:right;
    background-color:#ffffff
    }

    #leftsidebar{
    width:180;
    float:left;
    background-color:#999999;
    padding-top:20;
    padding-bottom:20;
    }
    #clear{
    clear:both;
    }
    #footer{
    text-align:center
    }

    </style>
    </head>
    <body>
    <div id="container">
    <div id="header"><h1>header</h1></div>

    <div id="content">
    <h2>Simple Beauty H2 SubTitle</h2>
    <p>This site design is open source, so feel free to use it as you want, but you must keep the link "Design by Pikanai.com" live on the design. Enjoy!</p>
    <p>Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Phasellus non erat eu dui dignissim dictum. Integer iaculis nulla at nisl. Proin ut enim non ipsum varius laoreet. Integer feugiat, ante fringilla blandit convallis, leo sapien egestas velit, non condimentum nulla sem vitae risus. Mauris aliquam auctor quam. Sed ac enim. Donec mattis dui id ligula. Integer vel sem eget ante cursus tristique. Nullam vel orci vitae sem interdum placerat. In eget lectus. Donec blandit. Quisque lacus urna, malesuada vel, mollis sit amet, rutrum nec, est. Proin blandit ornare nibh. Duis et felis.</p>
    <p class="quote">There could be your favourite quote or slogan.</p>
    <p>Fusce euismod nisi at libero malesuada consectetuer. Proin laoreet, nunc quis hendrerit gravida, neque leo placerat sapien, et semper tortor leo et urna. Ut tincidunt posuere tortor. Sed tristique, odio at luctus facilisis, nulla quam rhoncus tortor, at congue lacus elit nec metus. Sed tempor sapien ut elit. Donec ac turpis feugiat nisi porta vehicula.</p>
    <h2>H2 SubTitle #2</h2>
    <p>Aenean eu lorem at odio placerat fringilla. Cras faucibus velit quis dui. Proin scelerisque orci nec arcu. Pellentesque cursus. Vestibulum ante ipsum primis in faucibus orci luctus et ultrices posuere cubilia Curae; Nullam mattis iaculis purus. Curabitur velit. Vivamus et diam pharetra elit auctor molestie. Suspendisse potenti. Praesent enim. Vivamus at magna. Ut et dolor eu erat facilisis sollicitudin. Duis sed ante. Suspendisse lorem. Suspendisse mollis, dolor sit amet pellentesque sodales, diam risus adipiscing diam, vel ornare lorem pede ac ipsum.</p>
    </div>

    <div id="leftsidebar">
    So far, all the examples have used widths defined in pixels. This type of layout is known as
    fixed-width layout, or sometimes ice layout due to its rigid nature. Fixed-width layouts
    are very common as they give the developer more control over layout and positioning. If
    you set the width of your design to be 720 pixels wide, it will always be 720 pixels.
    </div>
    <div id="clear"></div>
    <div id="footer"> <strong>Copyright &copy; 2007</strong> | <a href="#">Your Site</a> | <b>Design by</b> <a href="http://www.pikanai.com">Pikanai.com</a></div>
    </div>
    </body>
    </html>

    thx

    judge0, Feb 22, 2008 IP
  2. Codythebest

    Codythebest Notable Member

    Messages:
    5,764
    Likes Received:
    253
    Best Answers:
    0
    Trophy Points:
    275
    #2
    So, what's the question?

    Codythebest, Feb 22, 2008 IP
  3. judge0

    judge0 Peon

    Messages:
    400
    Likes Received:
    9
    Best Answers:
    0
    Trophy Points:
    0
    #3

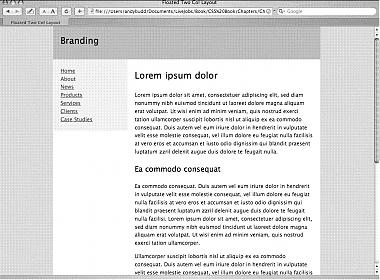

    just i want the layout be like this


    Attached Files:

    judge0, Feb 22, 2008 IP
  4. Colbyt

    Colbyt Notable Member

    Messages:
    3,224
    Likes Received:
    185
    Best Answers:
    0
    Trophy Points:
    210
    #4
    And the site in question looks like?

    We need the goal and the actual to help you.

    Colbyt, Feb 22, 2008 IP
  5. judge0

    judge0 Peon

    Messages:
    400
    Likes Received:
    9
    Best Answers:
    0
    Trophy Points:
    0
    #5
    this image from a book" css mastery advanced web standards solutions" page 139

    goal: try to learn how to make float-based layouts

    judge0, Feb 22, 2008 IP
  6. Dan Schulz

    Dan Schulz Peon

    Messages:
    6,032
    Likes Received:
    436
    Best Answers:
    0
    Trophy Points:
    0
    #6
    Try this. http://www.dan-schulz.com/temp/2columnlayout/

    Also note that you should be using an unordered list with no class or ID for your footer links. It's a list of links - mark it up as such. You can also use the parent ID as a reference when targeting the list as well.

    It will need to be tweaked a bit to match your particular layout, but it works.

    Dan Schulz, Feb 22, 2008 IP
  7. judge0

    judge0 Peon

    Messages:
    400
    Likes Received:
    9
    Best Answers:
    0
    Trophy Points:
    0
    #7
    thx Dan schulz so much this URL will help so much as try learn layouts

    but sorry i learned that we add id for footer and then style it as
    #footer{}

    judge0, Feb 22, 2008 IP
  8. Dan Schulz

    Dan Schulz Peon

    Messages:
    6,032
    Likes Received:
    436
    Best Answers:
    0
    Trophy Points:
    0
    #8
    I was talking specifically about this:


    <div id="footer"> <strong>Copyright &copy; 2007</strong> | <a href="#">Your Site</a> | <b>Design by</b> <a href="http://www.pikanai.com">Pikanai.com</a></div>

    Code (markup):
    It's far better to mark it up like this:


    <div id="footer">
    	<em>Copyright &#38;#169; 2007, <a href="#">your site</a></em><br />
    	Design by <a href="http://www.pikanai.com">Pikanai.com</a>
    </div>

    Code (markup):
    (Note: I took a closer look at the code you used and in this case a list would not be necessary. Anyway, you'd want to style the footer's contents by targeting the #footer ID and then the element you want to style.)

    Dan Schulz, Feb 22, 2008 IP
  9. deathshadow

    deathshadow Acclaimed Member

    Messages:
    9,732
    Likes Received:
    1,999
    Best Answers:
    253
    Trophy Points:
    515
    #9
    Suprised nobody noticed this:
    720 what? You need a metric there. Same problem on #content, #leftsidebar, etc, etc. #leftsidebar also has that issue not just on width, but the padding too.

    You have a perfectly good footer - put the clear there instead of wasting an extra DIV.

    There's no reason for that wrapping DIV around the h1 to exist - since there should only be one H1 per page, just style it directly.

    class="quote" - usually a good indication you should be using 'blockquote' instead of wasting a class.

    You also never close #container - while because you didn't post inside CODE bbcode I can't see your formatting, the lack of carriage returns probably means you also didn't bother indenting correctly - which would show that missing </div> immediately.

    It would also be simpler to apply #content's background to #container so the color stretches. Since the header has it's own color that top part just gets hidden behind.

    Is this what you are trying to do?
    <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN"
    "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd">
    <html
    	xmlns="http://www.w3.org/1999/xhtml"
    	lang="en"
    	xml:lang="en"
    ><head>

    <meta
    	http-equiv="Content-Type"
    	content="text/html; charset=utf-8"
    />

    <title>
    	Untitled Document
    </title>

    <style type="text/css">
    * {
    	margin:0;
    	padding:0;
    }

    body {
    	background:#CCC;
    	text-align:center; /* center #container in IE 5.x */
    }

    #container{
    	width:720px;
    	margin:0 auto;
    	text-align:left; /* return to 'normal' after IE 5.x centering */
    	background:#FFF;
    }

    h1 {
    	background:#666;
    	padding:20px 20px 20px 60px
    }

    p {
    	padding:0.5em 0;
    }

    blockquote {
    	font-style:italic;
    }

    #content{
    	width:520px;
    	float:right;
    }

    #content p {
    	padding-right:20px;
    }

    #sideBar{
    	width:180px;
    	float:left;
    	background:#999;
    }

    #sideBar p {
    	padding:0.5em;
    }

    #footer{
    	clear:both;
    	text-align:center;
    	background:#DDD;
    }

    #footer ul {
    	list-style:none;
    }

    #footer li {
    	display:inline;
    	padding:0 0.5em;
    	border-right:1px solid #000;
    	font-weight:bold;
    }

    #footer .last {
    	border:0;
    }

    #footer li a {
    	font-weight:normal;
    }

    </style>

    </head><body>

    <div id="container">

    	<h1>header</h1>

    	<div id="content">

    		<h2>Simple Beauty H2 SubTitle</h2>
    		<p>
    			This site design is open source, so feel free to use it as you want,
    			but you must keep the link "Design by Pikanai.com" live on the design.
    			Enjoy!
    		</p><p>
    			Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Phasellus
    			non erat eu dui dignissim dictum. Integer iaculis nulla at nisl. Proin
    			ut enim non ipsum varius laoreet. Integer feugiat, ante fringilla
    			blandit convallis, leo sapien egestas velit, non condimentum nulla sem
    			vitae risus. Mauris aliquam auctor quam. Sed ac enim. Donec mattis dui
    			id ligula. Integer vel sem eget ante cursus tristique. Nullam vel orci
    			vitae sem interdum placerat. In eget lectus. Donec blandit. Quisque
    			lacus urna, malesuada vel, mollis sit amet, rutrum nec, est. Proin
    			blandit ornare nibh. Duis et felis.
    		</p>
    		<blockquote>
    			<p>There could be your favourite quote or slogan.</p>
    		</blockquote>
    		<p>
    			Fusce euismod nisi at libero malesuada consectetuer. Proin laoreet,
    			nunc quis hendrerit gravida, neque leo placerat sapien, et semper
    			tortor leo et urna. Ut tincidunt posuere tortor. Sed tristique, odio
    			at luctus facilisis, nulla quam rhoncus tortor, at congue lacus elit
    			nec metus. Sed tempor sapien ut elit. Donec ac turpis feugiat nisi
    			porta vehicula.
    		</p>

    		<h2>H2 SubTitle #2</h2>
    		<p>
    			Aenean eu lorem at odio placerat fringilla. Cras faucibus velit
    			quis dui. Proin scelerisque orci nec arcu. Pellentesque cursus.
    			Vestibulum ante ipsum primis in faucibus orci luctus et ultrices
    			posuere cubilia Curae; Nullam mattis iaculis purus. Curabitur velit.
    			Vivamus et diam pharetra elit auctor molestie. Suspendisse potenti.
    			Praesent enim. Vivamus at magna. Ut et dolor eu erat facilisis
    			sollicitudin. Duis sed ante. Suspendisse lorem. Suspendisse mollis,
    			dolor sit amet pellentesque sodales, diam risus adipiscing diam, vel
    			ornare lorem pede ac ipsum.
    		</p>
    	<!-- #content --></div>

    	<div id="sideBar">
    		<p>
    			So far, all the examples have used widths defined in pixels. This
    			type of layout is known as fixed-width layout, or sometimes ice
    			layout due to its rigid nature. Fixed-width layouts are very common
    			as they give the developer more control over layout and positioning.
    			If you set the width of your design to be 720 pixels wide, it will
    			always be 720 pixels.
    		</p>
    	<!-- #sideBar --></div>

    	<div id="footer">
    		<ul>
    			<li>Copyright &copy; 2007</li>
    			<li><a href="#">Your Site</a></li>
    			<li class="last">
    				Design by
    				<a href="http://www.pikanai.com">Pikanai.com</a>
    			</li>
    		</ul>
    	<!-- #footer --></div>

    <!-- #container --></div>

    </body></html>
    Code (markup):
    Hope this helps.

    deathshadow, Feb 23, 2008 IP
  10. judge0

    judge0 Peon

    Messages:
    400
    Likes Received:
    9
    Best Answers:
    0
    Trophy Points:
    0
    #10
    thanks Dan Schulz for ur notifcation
    many more thanks deathshadow u really get what i want and u help me more

    judge0, Feb 23, 2008 IP
